9600/1200 BPS USB HART MODEM


Smart Embedded Systems (SES), Inc., a Silicon Valley Company, is producting the industry’s first Dual speed HART USB modem. SES, one of the pioneers in firmware based modems, has developed a very compelling and cost effective, patented dual speed Modem technology/solution for Industrial Automation applications. Our USB modem design is incompliance (registration pending) with HART “C8PSK and FSK Physical Layer Specifications" as defined in HART 6 Specification. With our 9600 bps modem, we support the Industry standard HART Communication Protocol (HART Stack 7.0) while offering at least 5 times the number of packets per second as well as the current FSK 1200 bps.

Features:

  • 9600/1200 BPS USB HART Modem
  • 1500 VRMS Electrical Isolation between HART and USB circuits
  • USB 1.1 and 2.0 compatible
  • Integral standard USB type “A” connector
  • Integral heavy duty HART Mini grabber connectors
  • Certified to meet HART Physical Layer Spec HCF_SPEC-60 and HCF_SPEC-54
  • USB powered, no external power supply or batteries needed
  • Universal – works will all registered HART devices
  • 36” (inches) USB cable length
  • Easy to install Virtual Serial Port for any Windowsbased application
  • Compact size 3.14” x 2.0” x 1.37” (80mm x 51mm x 35mm)
  • Rugged ABS plastic enclosure
  • Custom cable lengths on request
  • HART Modem Test Program included
  • Fieldcomm Group Registration (pending)
  • CE Compliance (pending)
  • 1 Year warranty

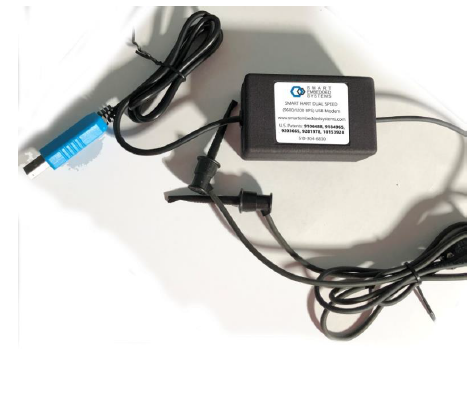

9600-1200-BPS-USB-HART-Modem

HART C8PSK (9600) Modem Characteristics

  • Coherent 8 Phase Shift Keying (PSK) Bits per symbol : 3 bits
  • 8 Symbols per HART C8PSK Specifications
  • Carrier Frequency : 3200Hz. ±1%
  • Data Rate: up to 9600 BPS
  • Supports Normal Analog Wiring

HART FSK Modem Characteristics

  • Binary Frequency Shift Keying Bits per symbol:
  • Mark = 1200Hz; Space = 2200Hz ±1%
  • Data Rate: 1200 BPS
  • Supports Normal Analog Wiring

Enclosure

  • Material High strength ABS Plastic
  • Dimensions 3.14” x 2.0” x 1.37” (81mm x 51mm x 37mm)
  • Total Unit Weight 3 oz. (85 g)

Cables

  • HART Cable Length 4 feet (1.2 m) with Mini-Grabber style connectors
  • USB Cable Length 36 inches (0.9 m)
  • USB Cable Connector USB Type A

HART

  • Interface: Capacitive and transformer coupling
  • Output: 600 mVpp
  • Leakage: < 10 uA
  • Isolation Voltage: 1500 VRMS
  • Connections: Across loop resistor or HART device
  • Specifications: HART 4, HART 5, HART 6, HART 7, HART Physical Layer Spec HCF_SPEC-60 HCF_SPEC-54
  • Fieldcomm Group: Registration Pending

Computer

  • Operating: System Windows 7, 8, 10

USB

  • Specifications: USB 1.1, USB 2.0
  • Power: USB port provides power to unit
  • Current Draw: 20mA

Environmental

  • Operating Temperature 00C to 500C (320F to 1220F)
  • Storage Temperature: -400C to 850C (-400F to 1850F)
  • Humidity: 0% to 99% (non-Condensing)

Compliances

  • CE Certification: Pending
Applications:
  • A. Process control and factory automation
  • B. Temperature sensors
  • C. Flow transmitters
  • D. Level transmitters
  • E. Pressure transmitters

SES has been awarded five patents related to its soft modem technology for HART devices: 9106488, 9184965, 9203665, 9281978 and 10153928.

SES has been awarded four patents related to its soft modem technology for HART devices: 9106488, 9184965, 9203665, 9281978 and additional patents pending.
