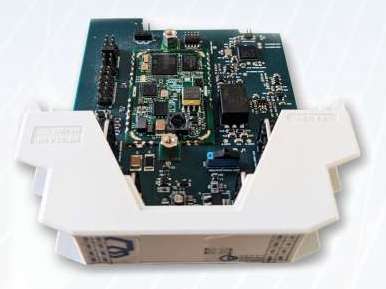

HART to HART-IP or PROFINET Converter (APL)

Overview

This converter lets you take an existing HART instrument and bring it onto an Ethernet-APL network — either as a HART-IP over APL device or as a PROFINET device profile on APL. It can power the connected HART device over the APL two-wire connection or from external power, in a compact DIN-rail enclosure.

Features

• Convert your existing HART device to HART-IP over APL interface, or to a PROFINET device profile on the APL
• Power the HART device from APL 2-wire or external power
• Small, compact DIN rail enclosure format
• Design based on Texas Instruments Phy DP83TD510E
• Implemented with STM32F417 ARM Cortex M4 processor with 512KB flash for program memory
• External analog I/O for connections to external sensors or PGA
• Serial TX/RX provided for external HART or MODBUS devices
• I2C and SPI flash available for device logs, FDI package, and other necessary data
• Secure intelligent firmware update for reliable operation
• HART-IP with recommended secure protocols supported

Contact

Baldev Krishan, Ph.D.
Email: [email protected]
Phone: 510-304-6830
Web: www.smartembeddedsystems.com
